LKPPlain diffuser

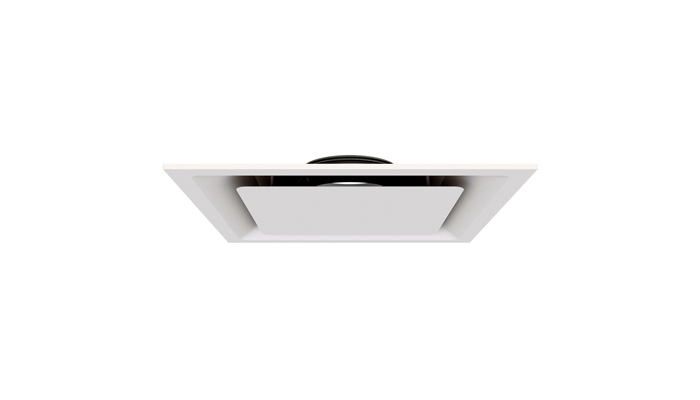

LKP is a flush-mounted square diffuser with a square unperforated face plate for installation in ceiling systems.
LKP is suitable for the horizontal supply of cooled air and has a large dynamic range.
Installing an LKP diffuser in a plenum box type MB can help to achieve a stable airflow to the diffuser as well as realise the potential for individual adjustment.

MB box with damper type B is with a unique linear cone damper which allows to use the full operational working area and can balance with a high balancing pressure with low sound generation.
Furthermore the construction of the damper provides a linear balancing characteristic, as well as an accurate and reliable measurement.

MB and CB box with damper type C or E are with rotating blade dampers for respectively supply and extract. Typically used in applications that do not require a high balancing pressure in the plenum box.

LKP can be used with VAV plenum box type MBV for use in DCV room control systems and potentially combined with Lindab Pascal System Management.
LKP can be ordered with a presence sensor (-P) and/or with temperature sensor (-T). The sensors are built into the faceplate.

  • Simple and stylish appearance
  • Large dynamic range
  • Can be used for both supply and extract air
  • Can be adapted to most ceiling systems
  • Plenum box with several damper options
